Portable Corral Panels For Cattle, Horses
Portable Corral Panels For Cattle, Horses

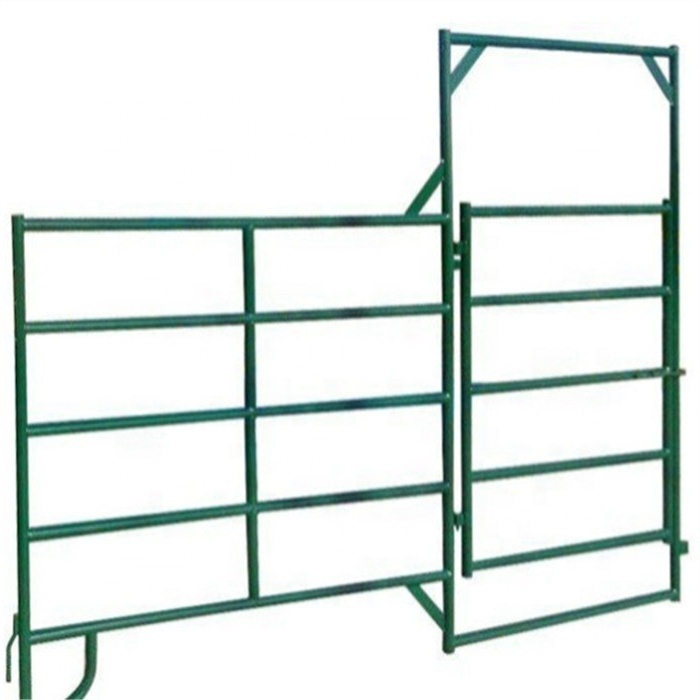

The durable portable Corral Panel provides the security of livestock. This 60 in. (H) corral panel 1-3/4 in. diameter steel round tubing with full-welded saddle joints, A quick-pin latch set can make the two panels assemble easily, while straight legs, triangle legs, square legs, special J-shaped legs prevent sinking and provide the panel portable instead of digging into the ground.
The high quality hot dipped galvanized and powder coated surface finishing can protect the corral panel last for years.
1. Specs of Corral Panels
- Height: 5 ft., 62’’, 72''
- Width: 10ft, 12 ft, 16ft
- Number of Bars: 6
- Steel Tube: 2 in. or 1-3/4 in. diameter round tubing with superior continuous-welded saddle joints with two vertical "Z" braces for added stability
- Tube Gauge: 16 ga., 19 ga., 20ga.
- Gate Latch: Quick pin latch with u-supports system to make assembling multiple panels easier
- Legs: Loop legs prevent each panel from sinking into moist or soft soils.
- Finish: Powder coated red, gray, green color to provide longer field life and resist corrosion
1. 2" Rounded Corner Heavy Duty Corral Panel 16 Gauge 10FT x 62" Tall 6 Rails |
2. 12 Ft. 6-Bar Red Tube Corral Panel, 1-3/4 In. Round x 19 Gauge With Two Vertical "Z" Braces |
3. Corral Panel 10 ft. 6-Bar, 19 gauge round tube, 1-3/4" O.D. or 2" round 16 ga 60" high with vertical "Z" braces |
4. Corral Panel, 6-Bar, Heavy-Duty, 50 in. Or 62 in.tall x 16 ft with Four Vertical "Z" braces |
2. Application of Corral Panels
- Livestock corrals
- Portable horse fences
- Round pens
