6ft x 10ftTemporary Chain Link Fence

Temporary Chain Link Fence,Standard 6′x10′ Temporary Chain Link Construction Horading Fence Aperture2.25" (57mm) 2.375" ,(60mm) X2.375" (63mm) HDG x 11 Gage,1.25''(32mm) O.D. Galvanized

Product No.: TCLF---003
Price: FOBtianjin USD 30-40/set

Online Inquiry Email Us

Details

6ft x 10ft Temporary Chain Link Fence

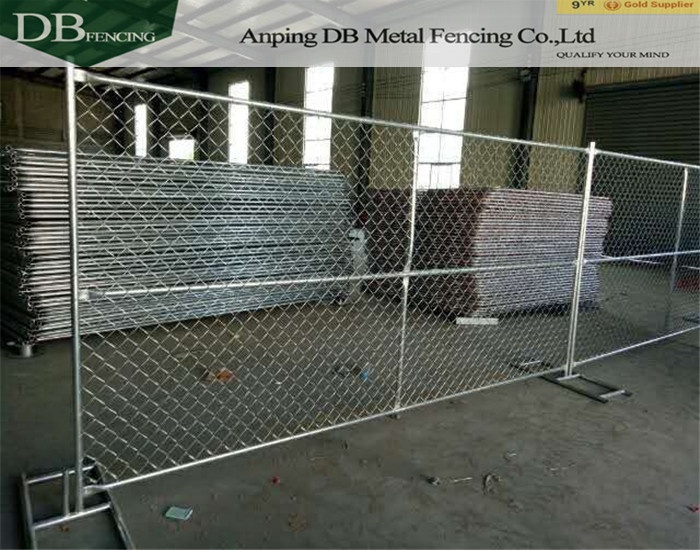

Temporary chain link fence is made up of chain link mesh panels weaved by hot dip galvanized steel wire, tubular welded frame, clamps and stable fencing block. All panels are hand made by traditional craft from beginning to end. Technical workers use tension bars and tension bands to wrap the tie wire tightly around the tubular frame. And then a self-supporting and modular temporary fencing system is formed.

1. 6ft x 10ft Temporary Chain Link Fence Panel
Design		North America,Australia & New Zealand
Made		China
1) Panel Specification
Panel Size		Panel Height: 6ft(1800mm); Panel Length: 10ft(3000mm)
Frame		1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional.
Chain Link Mesh Wire		9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional
Chain Link Mesh Size		2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional.
Brace		Cross, vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D
Treatment		Pre-Galvanised pipe and panel welded,then galvanised spraying or hot dipped galvanised
Standard (Standard panels include barbed wire as extra security)		AS 1725-2010 – Chain – Link Fabric Security Fences and Gates. AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial, Aquatic and General Use. AS 54687-2007 – Temporary Fencing and Hoarding.
2) Steel Feet Specification
Size		750mm L x 100 W x 8.0mm Wall Thick flat base or 30" length x 18" width x 8" Height /762mm x460mm x203mm, (32mm) O.D. tube base
Treatment		Hot dipped Galvanised;
3) Clamp Specification
Size	Specially moulded 4.0mm wall thickness for additional strength,80mm,90mm,100mm hole spacing(C/C);
Treatment	Hot Dipped Galvanised;
Weight	0.42kg /set ( 2 pieces clips with 1 bolt and 1 nut);

4) Packing	In Bulk
A.Qty In 1x20’GP	230 set ( 1 panel+1 steel +1 clamp with bolt and nut);
B.Qty In1x40’HC	520 sets ( 1 panel +1 clamp with bolt and nut);

5)Shipping Time	15-20 days for 1x40’HC after receiving the deposit;
6)Payment	30% deposit by TT, and the balance paid at sight of BL copy;
