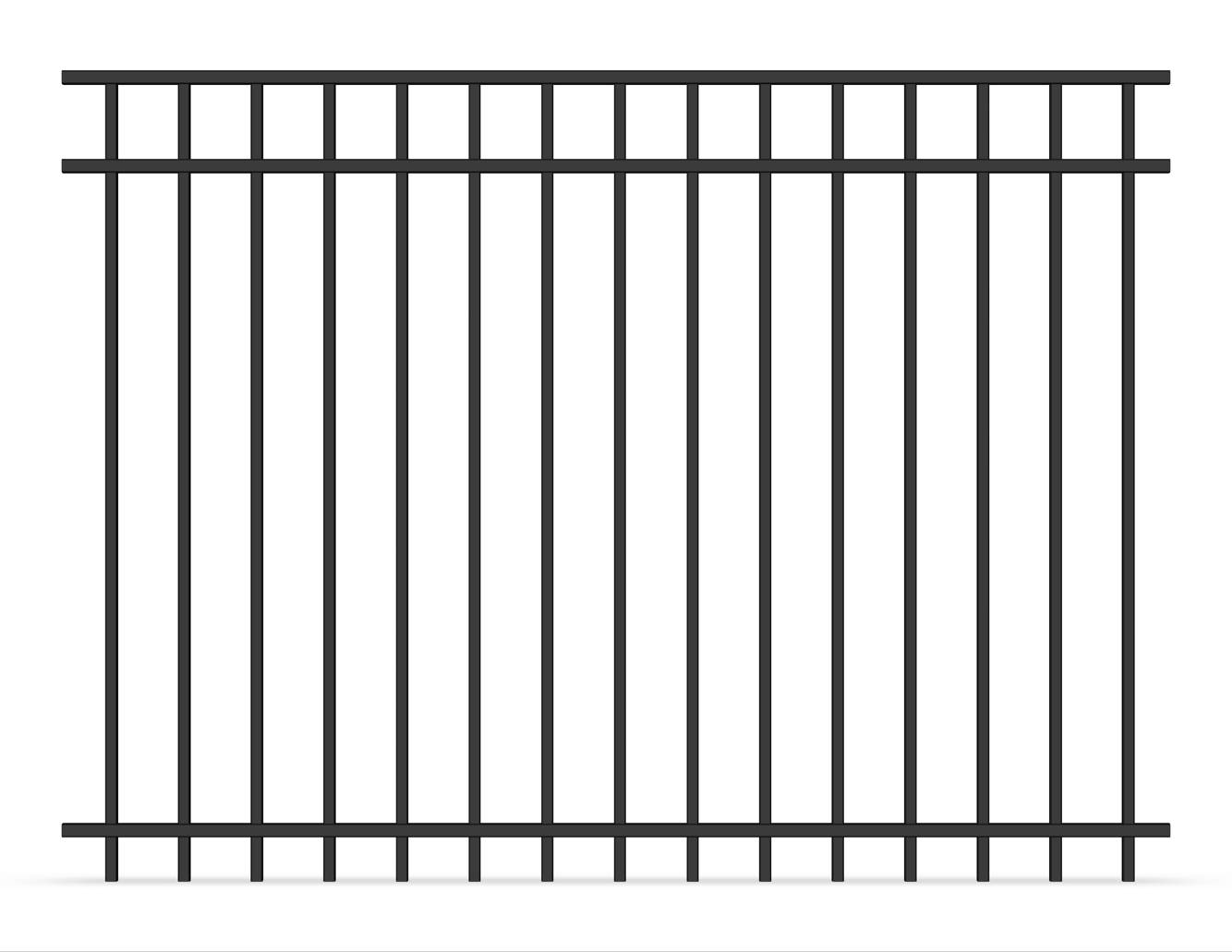

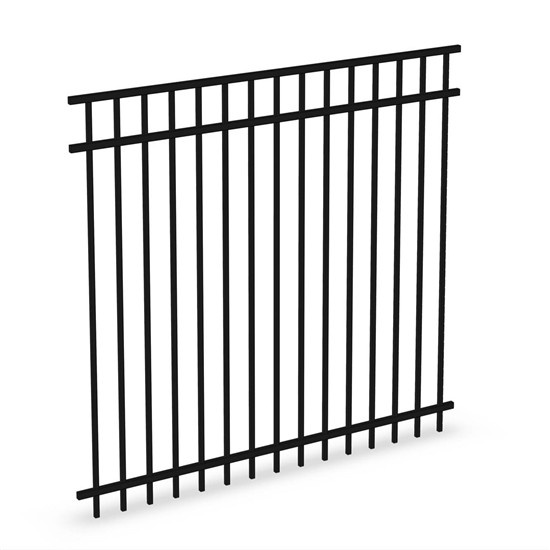

Flat-top classic steel tubular fence
Flat-top classic steel tubular fence
Flat-top classic steel tubular fence, with a structure of vertical picket terminate at the rails. It is a type of ornamental fencing which is low maintenance, no need for frequent repainting as traditional wrought iron fencing but remain visually attractive and strong enough for secure your property. Compared with aluminium fence, steel fence is longevity without sag under weight or stress. Classify by the number of horizontal rails, there are 2-rail steel fence, 3-rail steel fence, 4-rail flat-top steel fence optional.
As a experienced manufacture, we always adhere to 360° manual welding rather than by automated tools to prevent any leakage of welding and ensure the most appropriate strength. Thus, we are competent for standard and special styles and sizes of steel fence for courtyard, poolside, roadside, airport, station, factory, school, estates, garden & lawn and other sites need security protection.
1. Flat-top classic steel tubular fence Description
Material: hot dipped galvanized round and square tube
Black color powder coated
Width 2.4m x Height 1.8m , Width 2.4m x Height 2.1m
40x40x1.6mm top and bottom rail, 25x25x1.2mm Verticals
There are 17 vertical pickets 25x25mm with spear.
Gap in between the pickets is 110mm
Post 60x60x2.0mm or 80x80x2.0mm.
Flat-top classic steel tubular fence |
|
| Market | America, Canada, Euro,Australia & New Zealand |
| Made | China |
| 1) Panel Specification | |
| Panel Size | 6' × 8', 10' × 8', 7' × 8', 8' × 8' |
| Horizontal rail O.D. | 1.26" × 1.26", 1.58" × 1.58", 1.78" × 1.78", 2" × 2", optional. |
| Vertical rail O.D. | 0.63" × 0.63", 0.75" × 0.75", 1" × 1" |
| Fence post | 2.36" × 2.36" × 0.08" |
| 2.56" × 2.56" × 0.08" | |
| 3.15" × 3.15" × 0.08" | |
| Treatment | Full hot dipped galvanized. |
| Pre-galvanized and powder coated. | |
| Color | Silver, gray, black, etc. |
| 2) Clamp Specification | |
| Size | 1 set of steel fence post include 1pcs post cap, 4 set brackets, 12 pcs self drilling screw. |
| Treatment | Hot Dipped Galvanised or powder coated |
| Weight | / |
| 3) Packing | In Steel Pallet |
| 1 × 40' HC for 10' × 8' | 290 sets (1 panel + 1 post + 1pcs post cap + 4 set brackets + 12 pcs self drilling screw). |
| 1 × 40' HC for 6' × 8' | 408 sets (1 panel + 1 post + 1pcs post cap + 4 set brackets + 12 pcs self drilling screw). |
| 4) Shipping Time | 15-20 days for 1x40’HC after receiving the deposit; |
| 5) Payment | 30% deposit by TT, and the balance paid at sight of BL copy; |

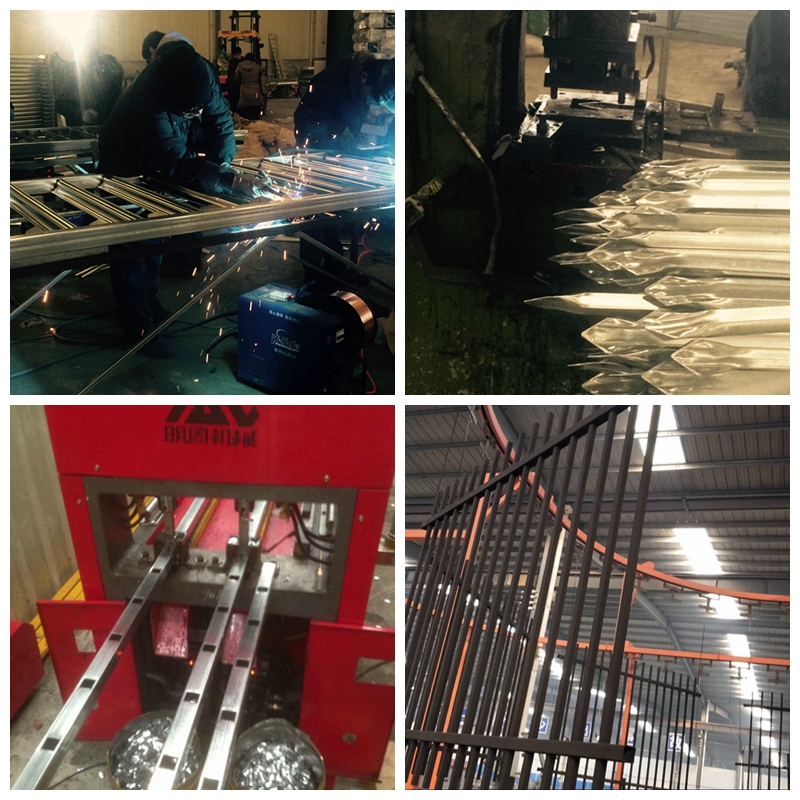

2. Flat-top classic steel tubular fence Processing
1>Cut Shot
2>Punching Holes
3>Acid-Washing
4>Rich-Zinc Powder Coating
5>Polyester Color Powder Coating

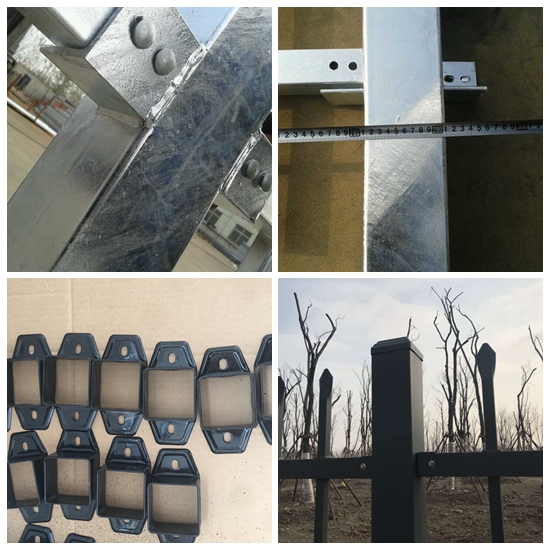

3. Flat-top classic steel tubular fence Accessories

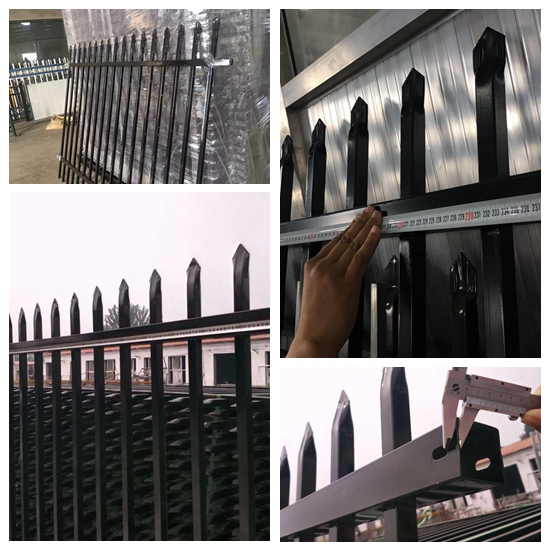

4. Flat-top classic steel tubular fence Quality Testing
· Stick to manual 360° full welding for highest strength.
· Pre-galvanized and power coating offers corrosion resistance and bright color.
· Hot dipped galvanized surface treatment for long service life.
· All hardware including mounting brackets & screws are available.
· Customized sizes, styles for your ornamental needs.
· Reliable and professional advice for your effective purchase.
· Free value-added service for replacement or a rainy day.

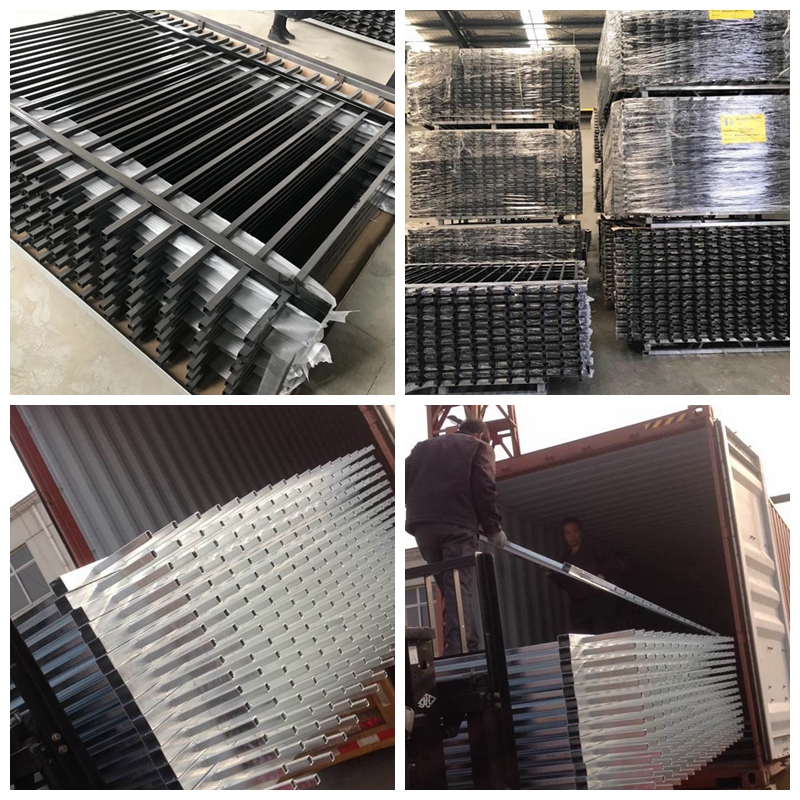

5. Flat-top classic steel tubular fence Loading
6. Flat-top classic steel tubular fence Services
1.Free sample services
DB Fence can offer you high quality free sample for you,if you need.
2.Customize services
We can produce many various garden fence products,and specification are different,but some customers' requirements cann't be satisfied,so we make customize services,we can make as your requirements.
3.After sales service
When we have a cooperate, We will visit the customer, understand customer for the evaluation of our product,when have some problem,we will do our best to solve them.We do this,it can help us to improve ourselves, to provide a higher quality product .
