AU Temporary Fence

AU Temporary Fence

Temporary fencing system is a combination of components, including temporary fence panels, plastic feet, steel clamps and other optional accessories, to be used in construction sites, events ,Road,Crowd and private sites for protection and security.

Temporary fence is also known as Temporary fencing, temporary fence panels, Temporary Fence, easy fence and removable

fence.

1. Process Of Temporary Fence

Material----straighten & cut short----welded---hot-dipped galvanized ----Zinc silver painting after Pre-galvanized welding----packing in steel pallet

2. Three Types of sell well Temporary fencing Exported to Australia and New Zealand

1.Temporary Fencing -42 microns Hot dipped galvanized or zinc layer painting after weld pregalvanized panel

”Smart Panel 2400” – 2.4 Welded Mesh Panel



Panel Size	2400mm(L) x 2100mm(H)
Frame	32mm O.D. – 1.35 Pipe Wall Thickness
Infill Mesh	3.0mm horizontal, 3.0mm vertical 150mm x 60mm spacing
Weight	16 kgs
Finish	Hot dipped galvanized or zinc layer painting after weld pregalvanized panel



2.Temporary Fencing -42 microns zinc layer painting after weld pregalvanized panel

“Maxi Panel 2400” – 2.4 Welded Mesh Panel



Panel Size	2400mm(L) x 2100mm(H)
Frame	32mm O.D.  2.0mm Pipe Wall Thickness
Infill Mesh	4.0mm horizontal, 4.0mm vertical 150mm x 60mm spacing
Weight	22 kgs
Finish	Hot dipped galvanized or 42 microns zinc layer painting after weld pregalvanized panel



3.Temporary Fencing -42 microns zinc layer painting after weld pregalvanized panel

“Maxi Panel 3300” – 3.3 Welded Mesh Panel

Panel Size	3300mm(L) x 2100mm(H)
Frame	32mm O.D.  2.0mm Pipe Wall Thickness
Infill Mesh	4.0mm horizontal, 4.0mm vertical 150mm x 60mm spacing
Weight	30 kgs
Finish	Hot dipped galvanized or 42 microns zinc layer painting after weld pregalvanized panel

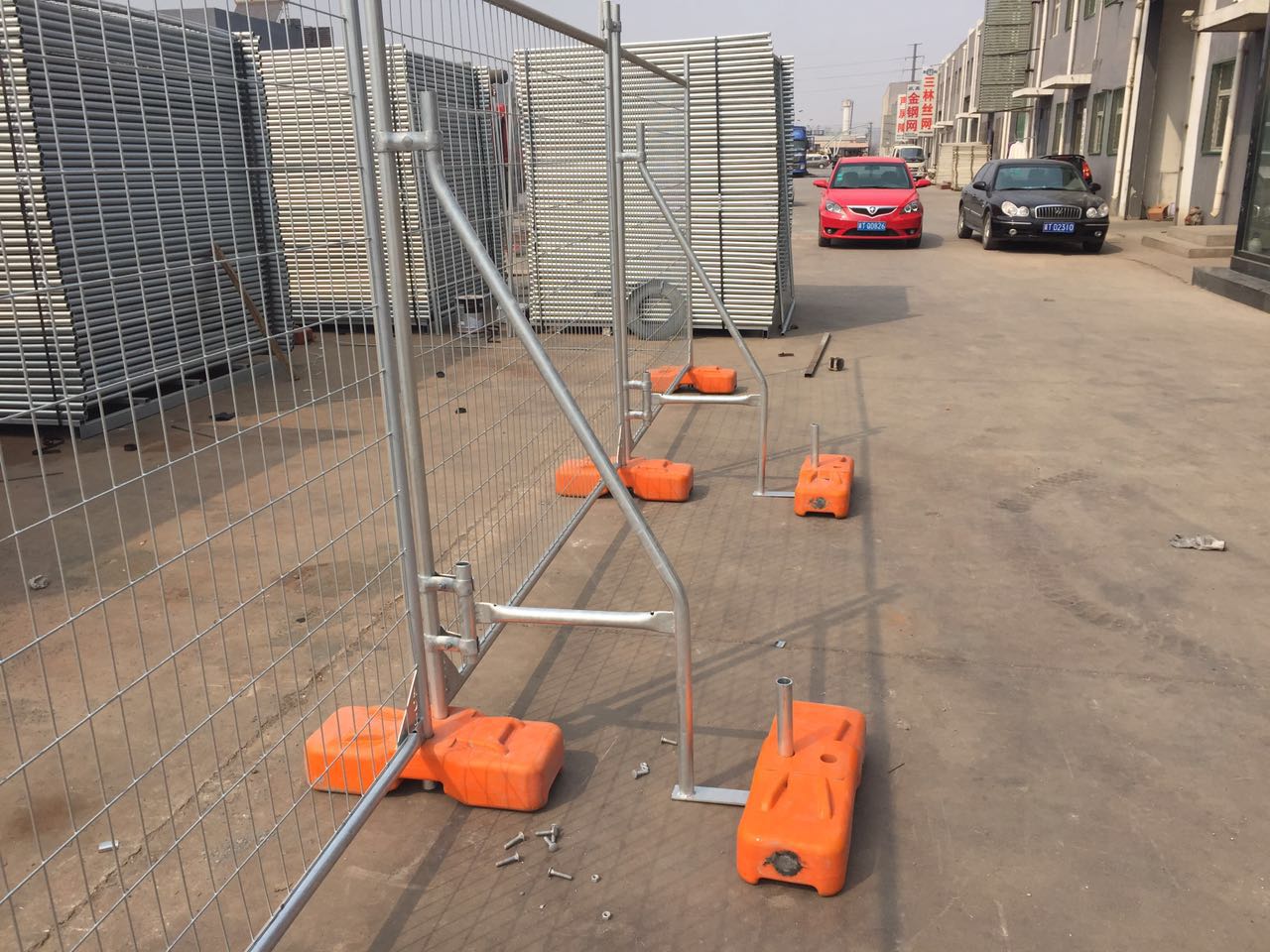

3. A Complete Temporary Fencing System

When used in conjunction with our Plastic/Concrete Fence Feet, Clamps and Stays, it creates a Complete Temporary Fencing System that is very stable, versatile and cost effective.

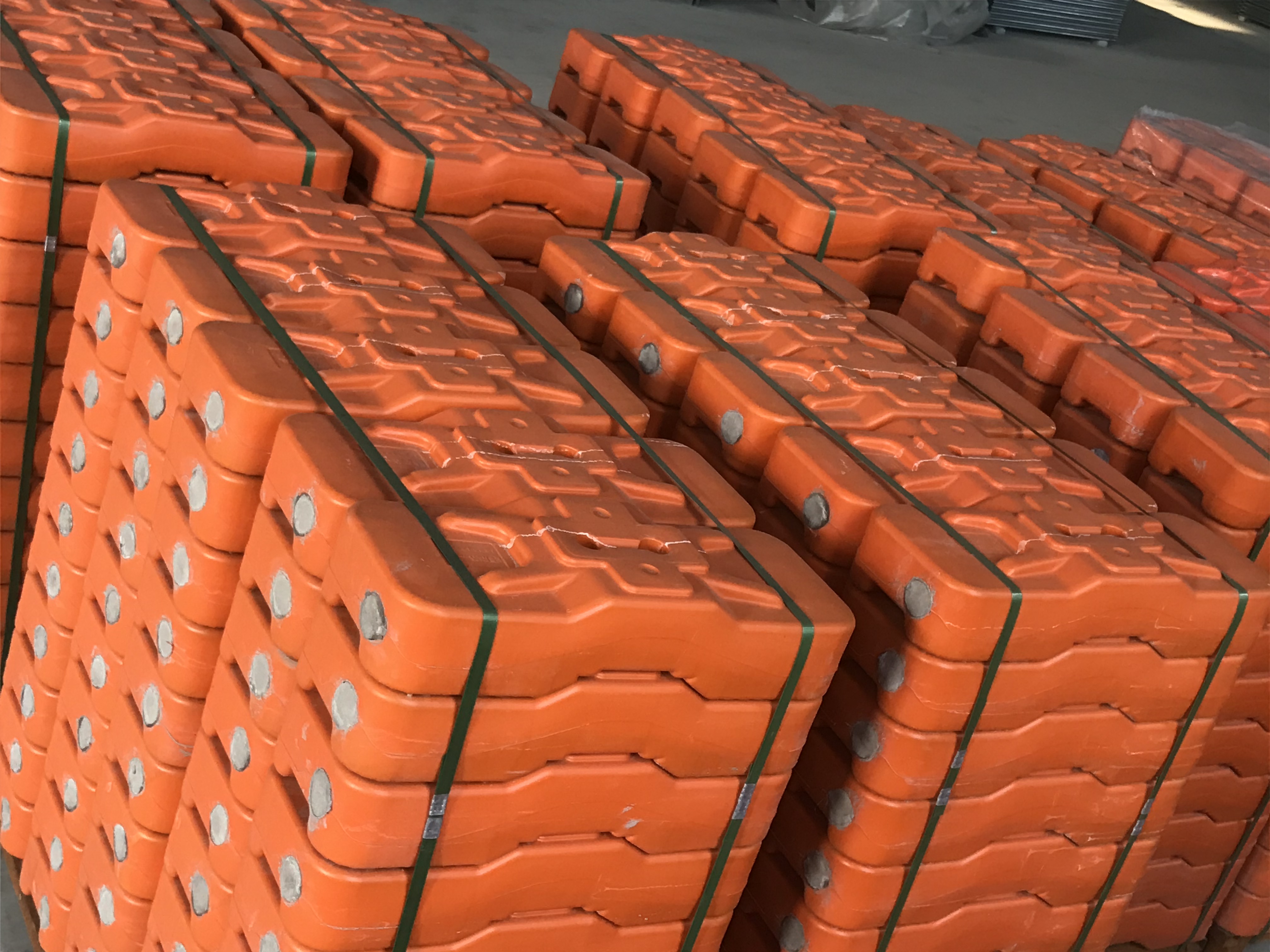

 1) Plastic/Concrete Fence Feet

Our Plastic/Concrete Fence Feet are a high quality, heavy duty, long life product.

Your Temporary Fence will look great and be safer with these high visibility coloured feet.

They are easier to see which makes them safer as they are less likely to be a tripping hazard .

· Full range of colours available

· Made of a Flexible & Durable co-polymer polypropylene

· UV5 for sun/weather protection

· Wide range of post hole sizes – 20, 25, 32 & 40mm nb. (26, 33, 42 & 48mm od)

· Post holes can run across or up and down the blocks

· Designed to be filled with concrete.

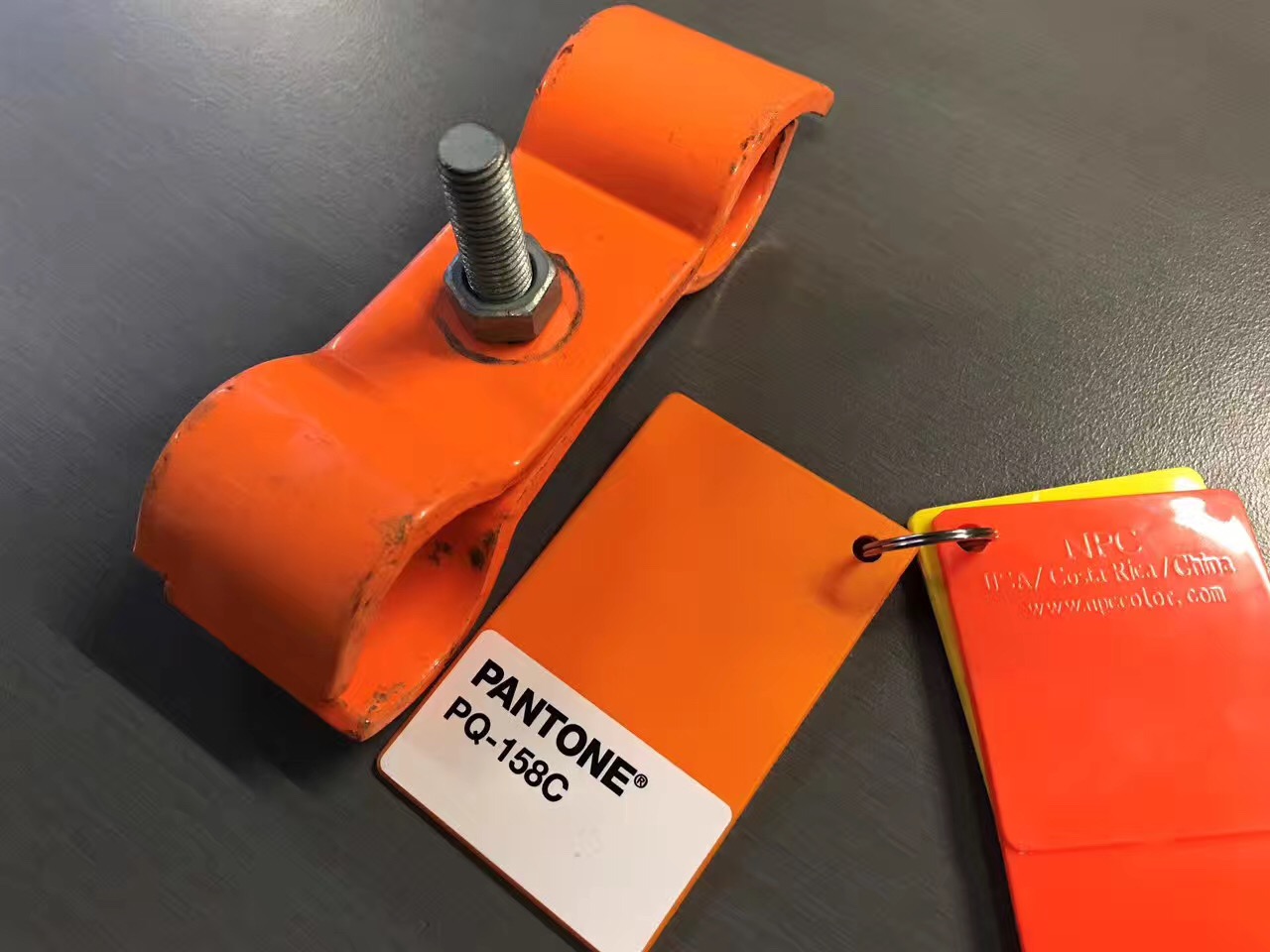

 2）Steel Clamps

High quality Temporary Fence Clamps used to secure the panels together.

· Secure the panels together.

· Australian Standard: 42 Microns Hot Dipped Galvanized

· Thickness: 4mm for additional strength.

 Specially moulded and 4 mm thick for additional strength.

 3) Temporary Fence Bracing

· Uses: support the temporary fence in high wind areas.

· australian Standard: 42 Microns.

· Each Stay: 3 Clamps and 3 Plastic Feet.

· We Stocks kilometers of our Temporary Fencing System, so can supply you as required.

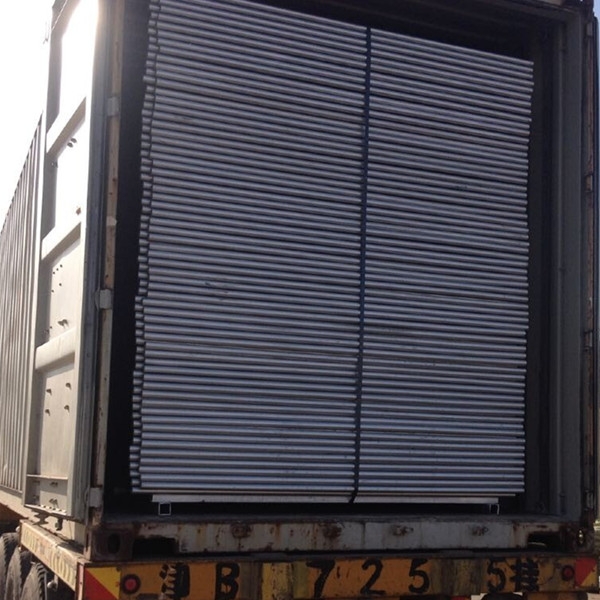

 4) Loading & Application
